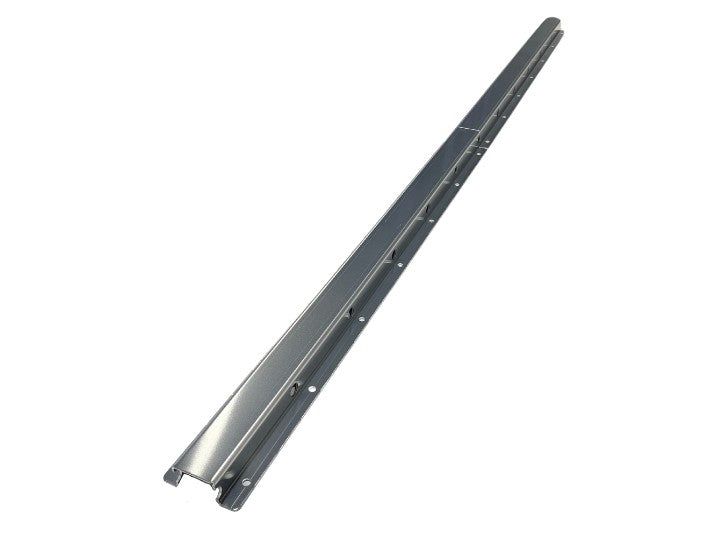

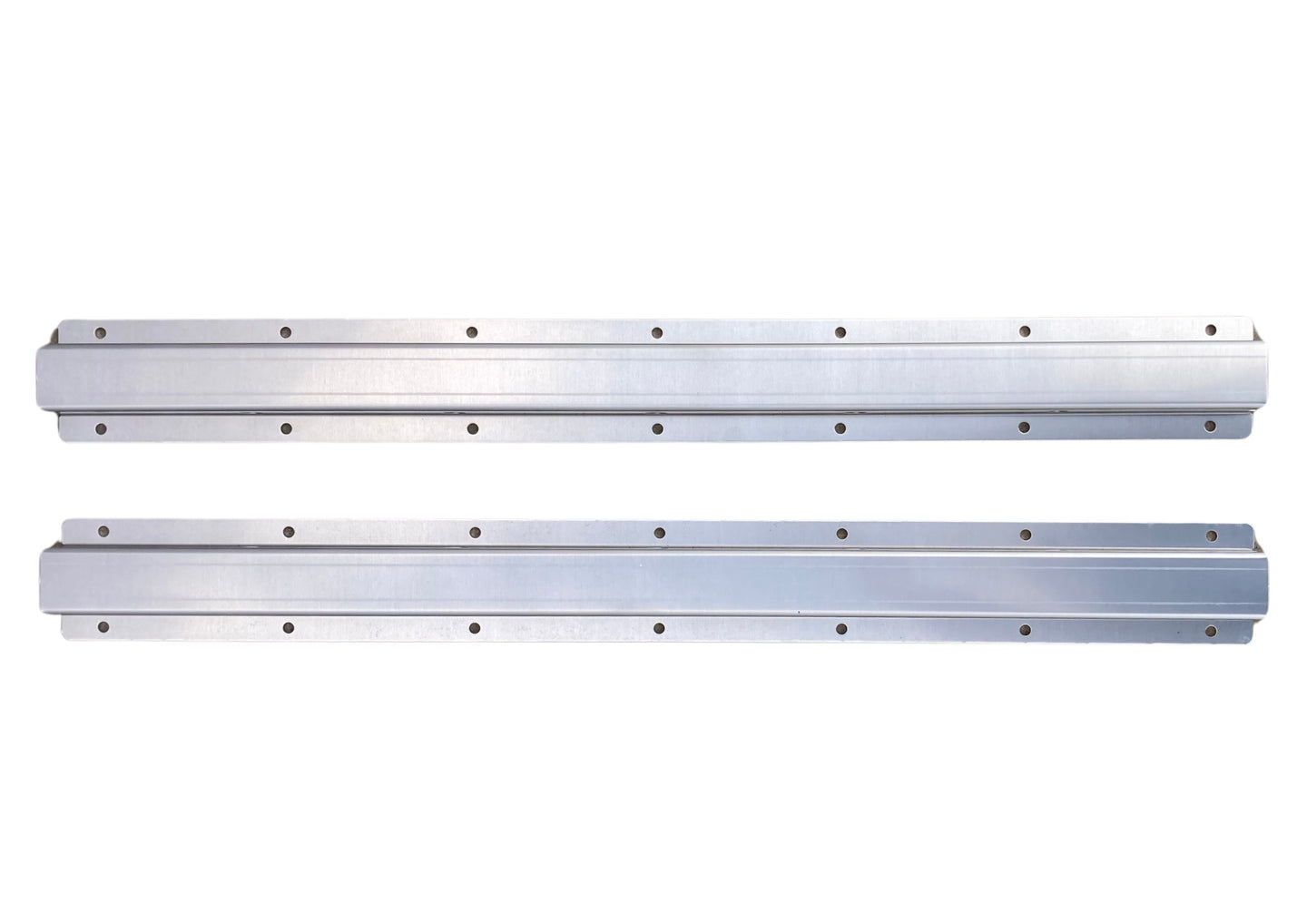

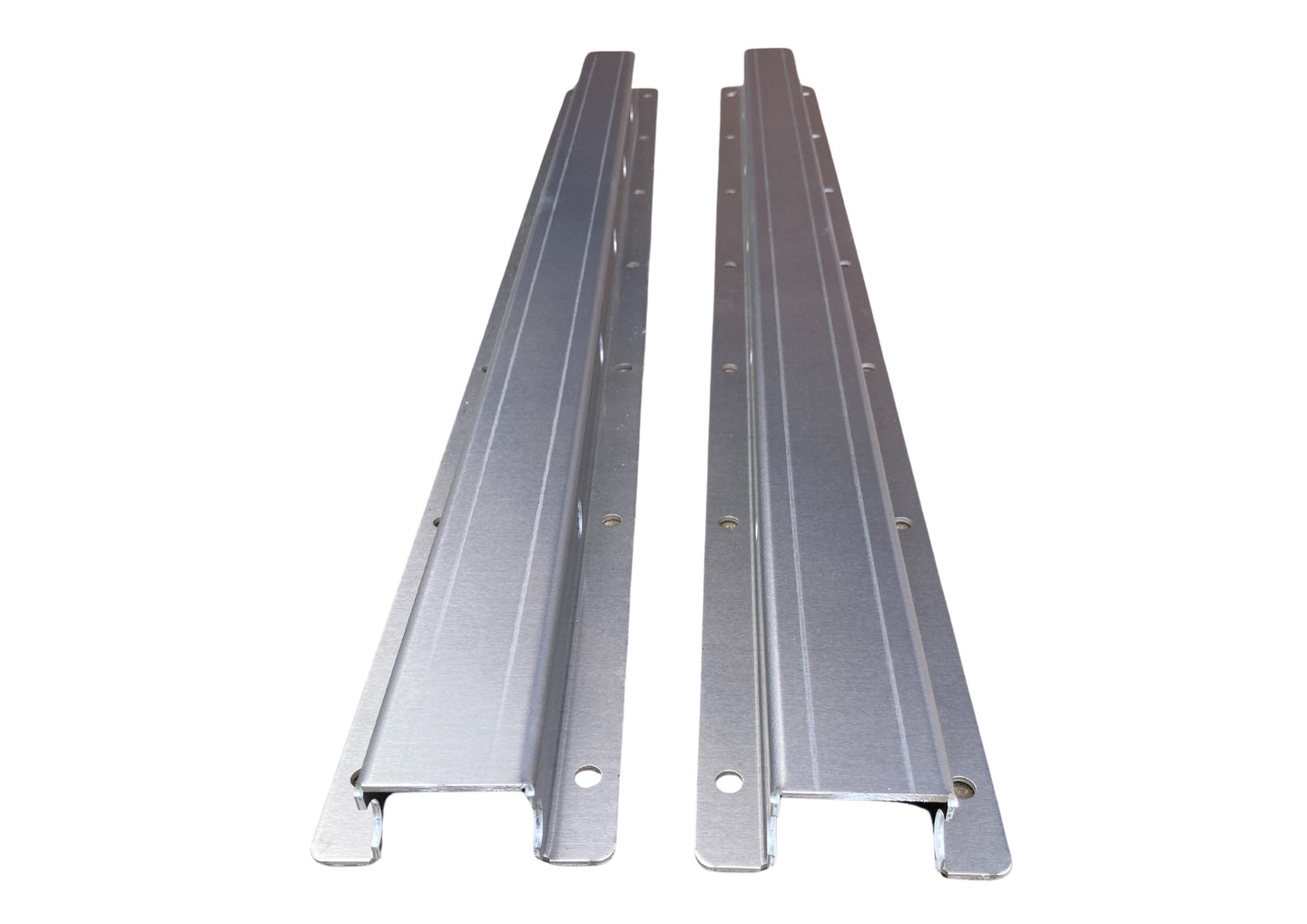

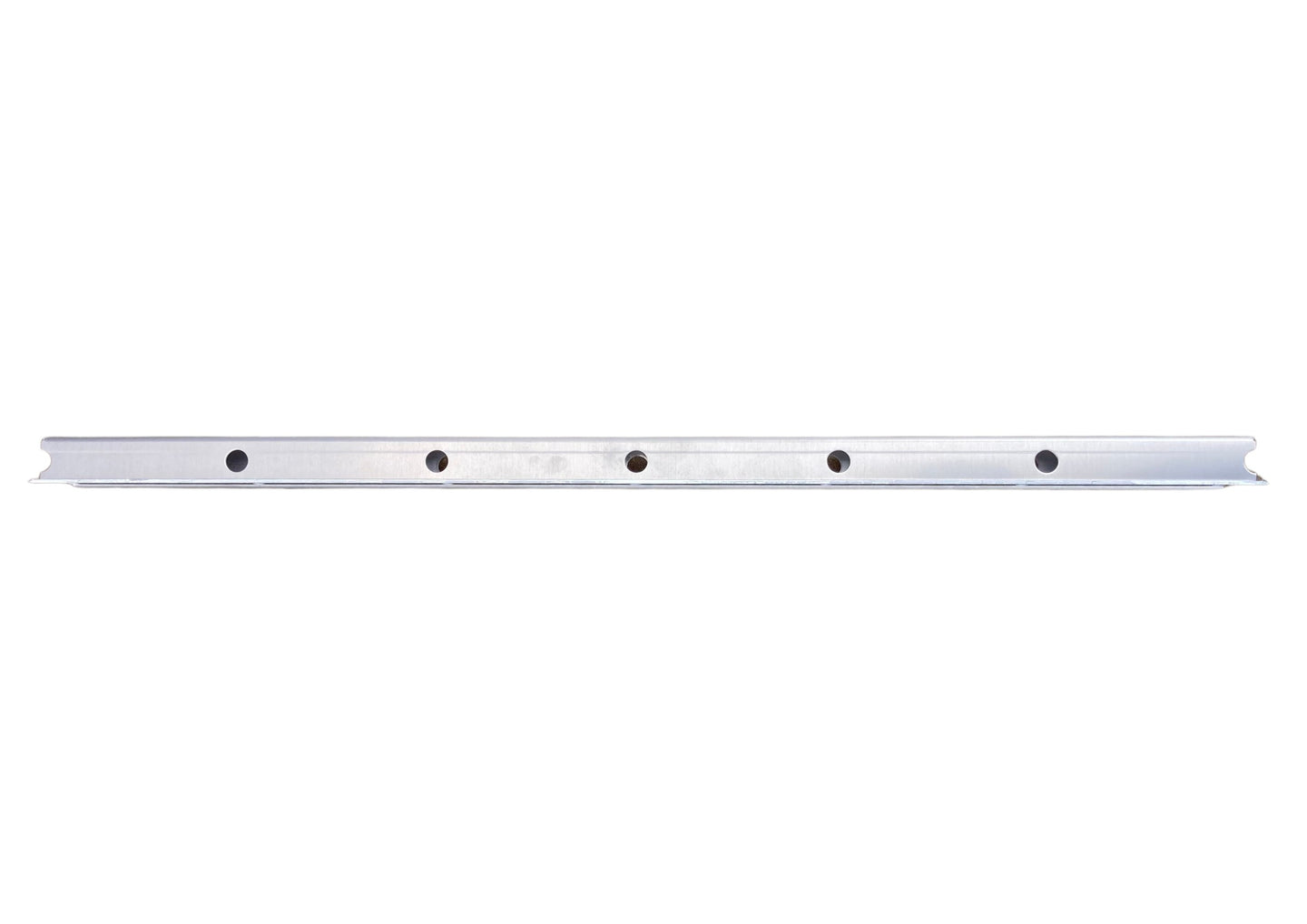

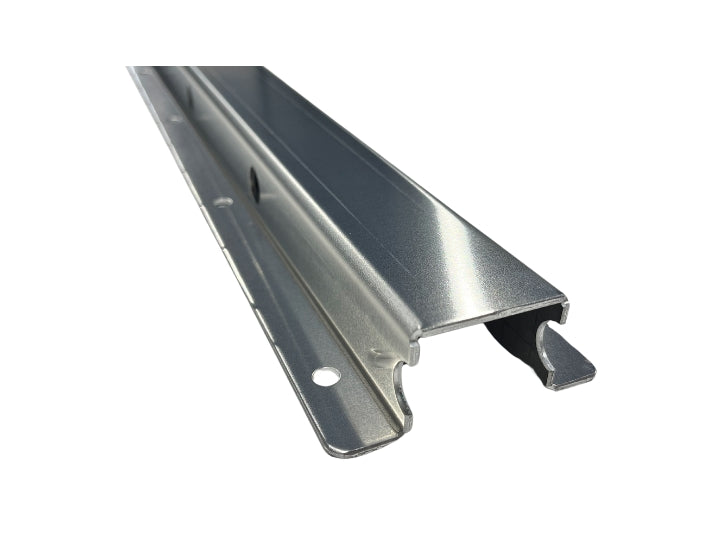

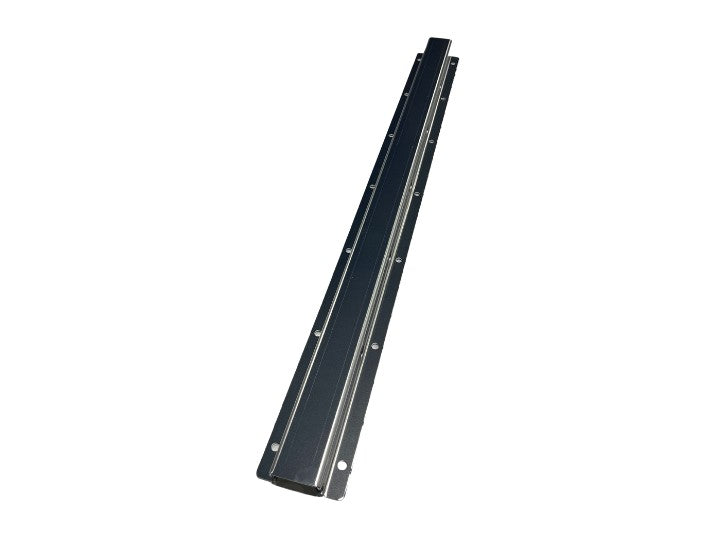

Canopy False Floor Riser Channels are a universal false floor mounting support that allows you to create a raised floor in your canopy.
The channels are sold in pairs, each 850mm long which you can butt together across the width of your canopy creating a 1700mm wide surface to screw your timber floor into.
Designed to create a raised floor to clear a 50mm canopy lip using a 17mm thick timber base you will have a finished height of 51mm before adding any carpet.
HOW MANY DO YOU NEED
It depends on the size of the canopy, but for a standard dual cab size canopy around 1800 long, we recommend 4 pairs.
HOW TO FIT
Depending on your preference, you can glue these down, or fix them through the floor using the pre-drilled 8mm holes.
FEATURES
- 2.5mm aluminium construction
- Pre-drilled cable pass through holes on the sides of the profiles
- Pre-drilled holes in the flange if you want to screw or bolt-down instead of using adhesive.
SPECIFICATIONS
Material: 2.5mm aluminium, 5005 Grade
Weight: 0.87kgs each / 1.74kgs per pair
Finish: Raw aluminium finish
DIMENSIONS
- Length: 850mm per channel
- Height: 34.5mm
- Overall width: 85mm
- Top mounting surface: 45mm
PACK CONTENTS
- 1x pair of floor risers
Does not include timber, floor, bolts or glue.
