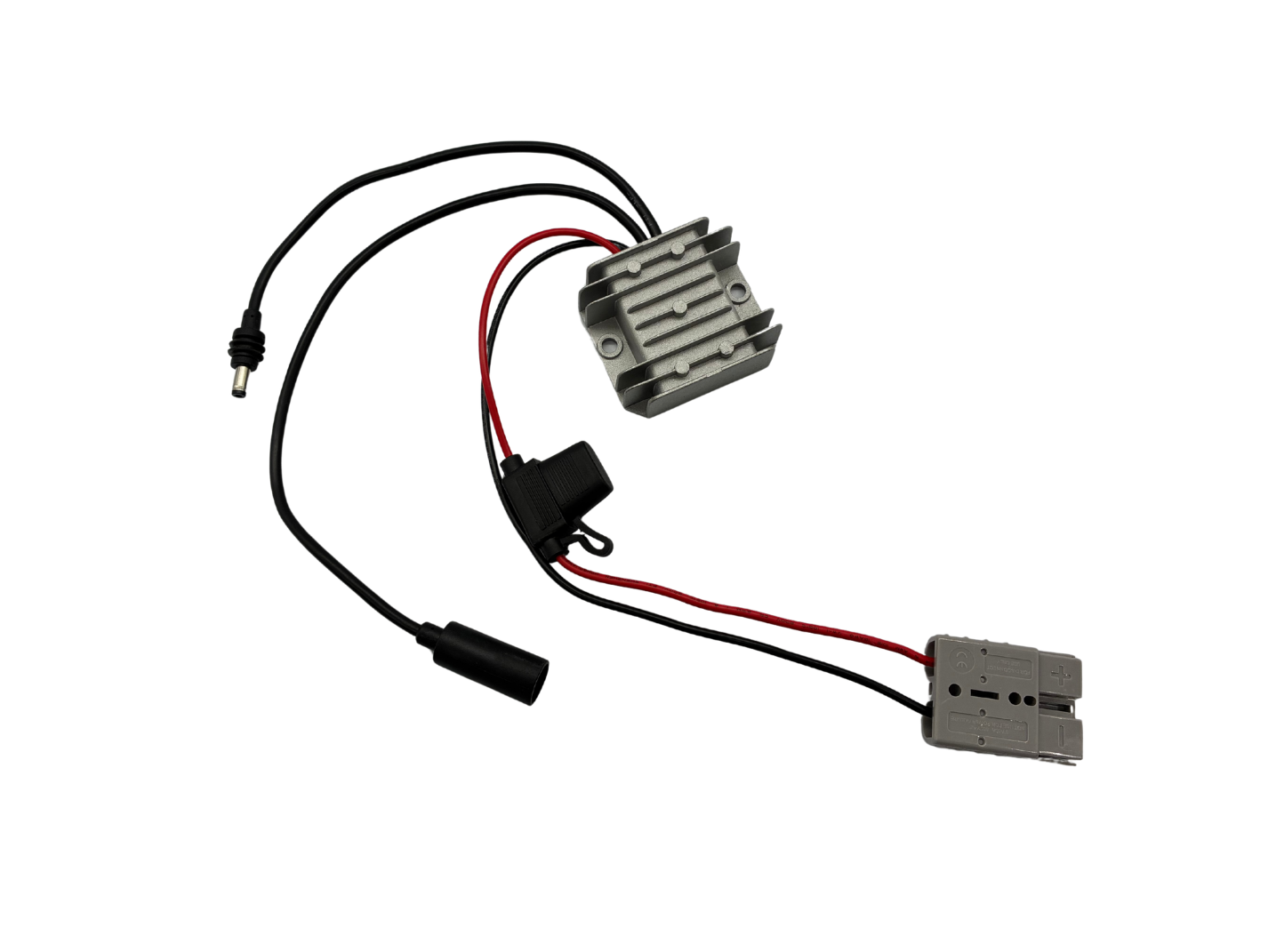

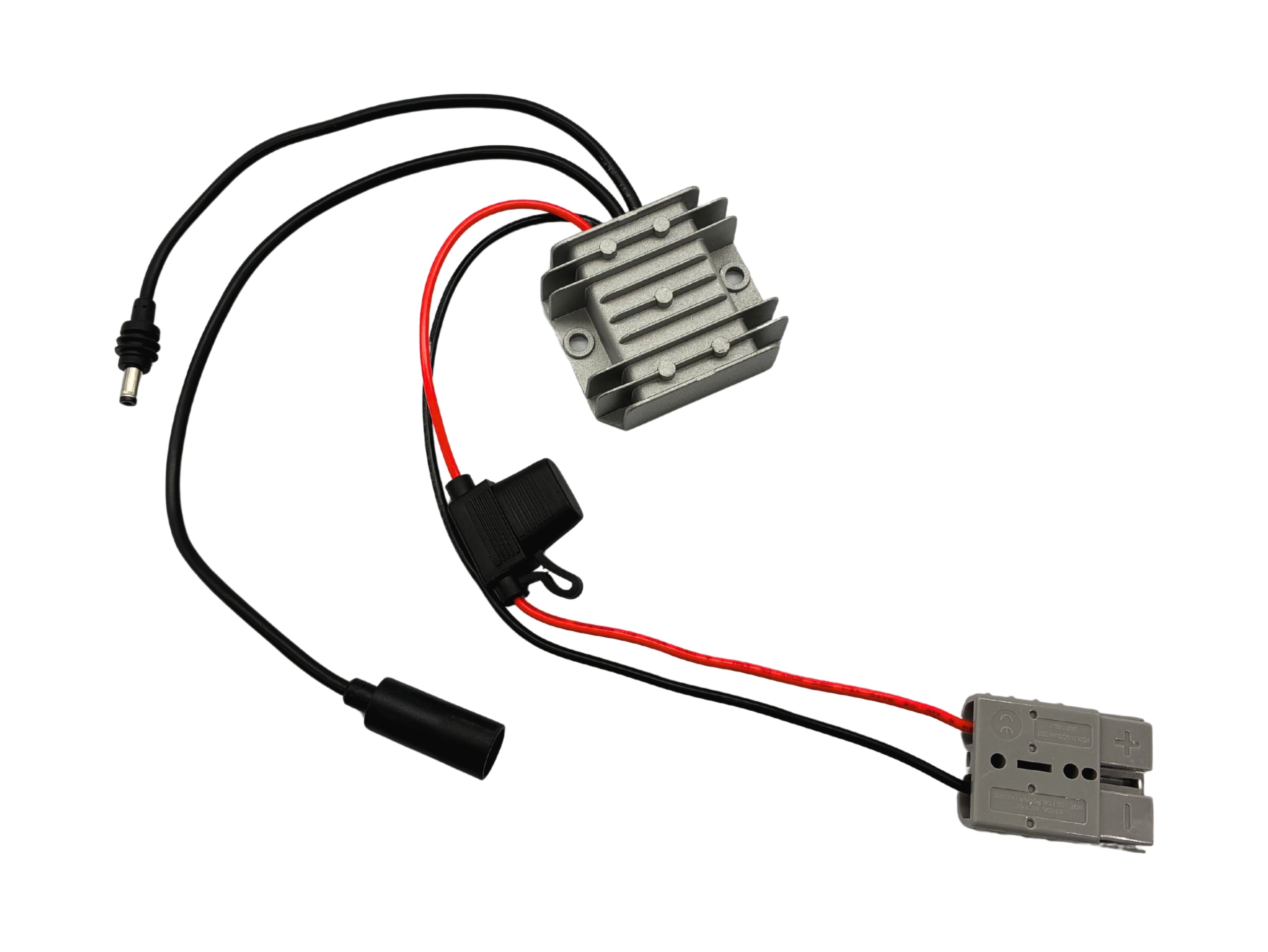

A 12V/24V Adaptor is required to power your Starlink Mini with a 12V-24V electrical system.
For a constant and stable connection, the Starlink Mini requires 30V. This adaptor takes your 12V-24V input and increases it to the required amount to ensure it operates correctly.
The adaptor has a built in cut-off to protect your battery when the input voltage drops below 11.5V.

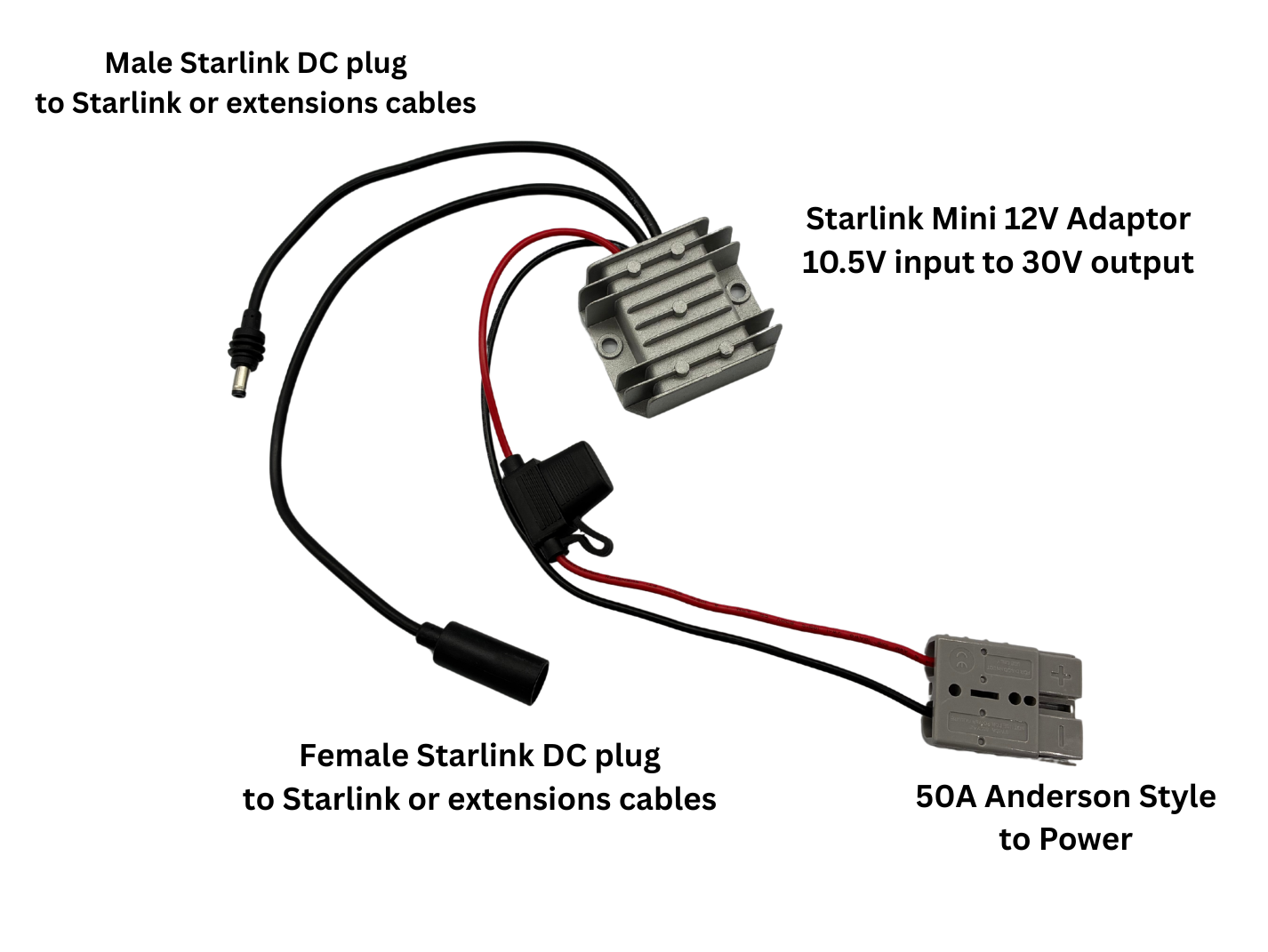

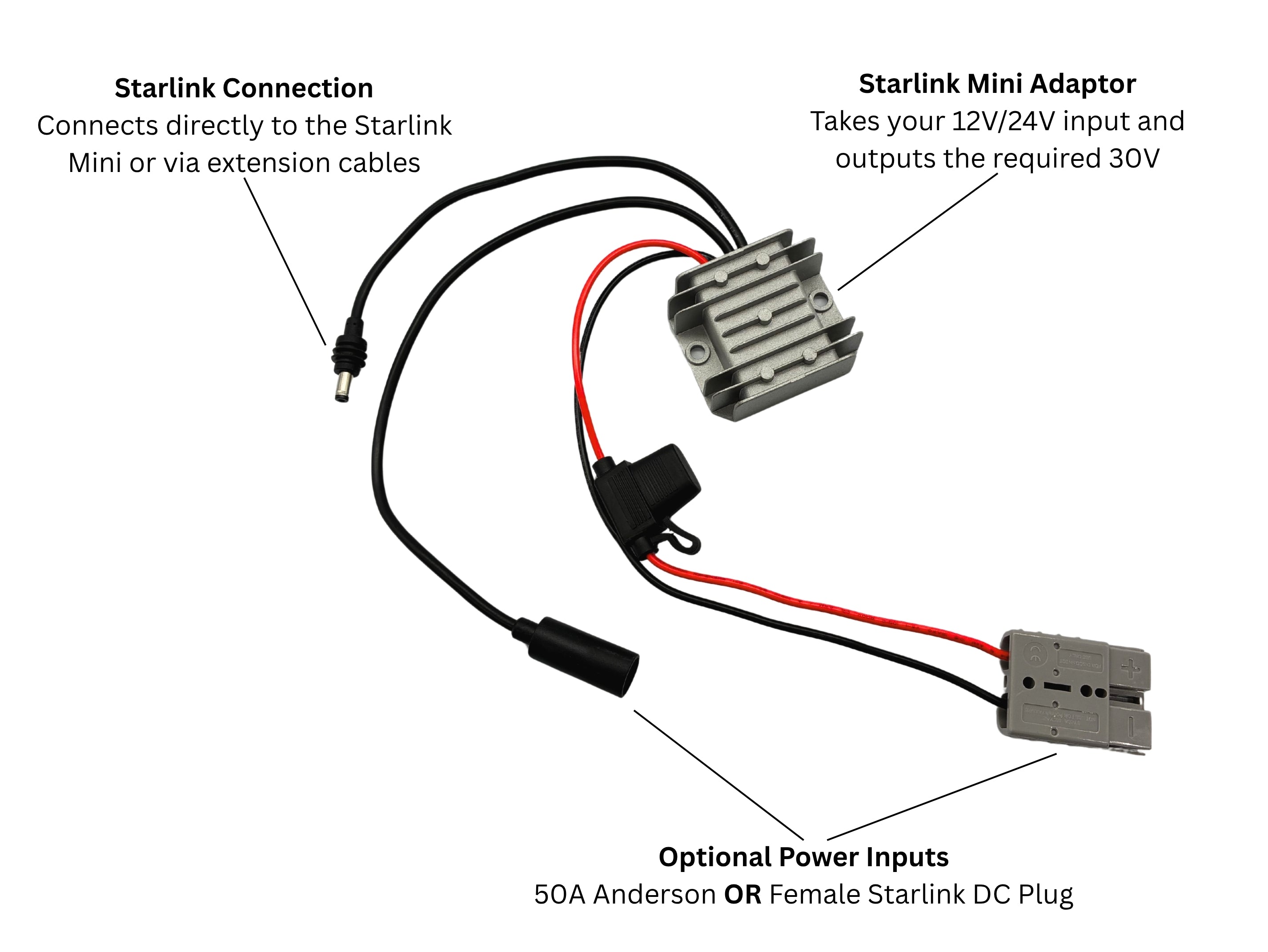

Plug & Play Connection: The adaptor has a 20cm cable with male DC plug for connection to your Starlink Mini and you can use either the 50A Anderson or female DC plug to connect to your power supply.
This adaptor can be mounted inside the Rogue Canopies V2 Starlink Mini Mount underneath the Starlink Mini using the included hardware.
PACK CONTENTS
- 1x Starlink Mini 12V/24V Adaptor
- Hardware for optional mounting inside the Rogue Canopies V2 Starlink Mini Mount.
INSTRUCTIONS
SPECIFICATIONS
| Input: | 12V / 24V |
| Output: | 30V 3A Max, per the Starlink Mini requirements |
| Voltage Cut-off: | 11.5V |
| IP Rating: | IP67 |
| Input Connection: | Optional 50A Anderson or Starlink DC Plug |
