Upgrade your setup with our new Canopy Light Bars. Built for canopies, caravans and camping, these premium quality light bars feature an aluminium housing, a glare-reducing diffused light cover and on-device controls to quickly switch between three dimmable colour modes.
Equipped with a standard female DC5521 plug, you can quickly and easily create a custom lighting setup using our range of plug-and-play extension and splitter cables.
FEATURES
-
Three dimmable colour modes: quickly switch between three dimmable colour modes - cool white, warm white and amber.
- On-device controls: convenient on/off switching, colour cycling and dimming through the on-device switches.
- Plug & Play: Hassle free setup using our range of optional plug-and-play extension and splitter cables.
- Hassle-free mounting: using the included 3M VHB double sided tape, or use M5 hardware to fix through the end flanges (hardware not included).
- Premium quality aluminium housing with a diffused LED cover for comfortable soft lighting.
- Low power draw: highly efficient LEDs maximum your battery life.
-
Weatherproof design: IP67 rated for reliable performance in wet and dusty environments.
SPECIFICATIONS
| Input: | 10-16V |
| Current Draw at 12V: | 30cm = 0.56A, 60cm = 1.1A, 90cm = 1.7A |
| Light Colour: | White 5500K, Warm White 4300K, Amber 3000K |
| Materials: | Aluminium housing |
| IP Rating: | IP67 |
| Working Temperature: | -25°C to 40°C |
| Plug Type: | DC 5521 |
| Cable Length: | 150mm |
| Overall Dimensions: (excluding cable) |
30cm Bar: 20mm W x 11mm H x 372mm L 60cm Bar: 20mm W x 11mm H x 672mm L 90cm Bar: 20mm W x 11mm H x 972mm L |
| Mounting: | 3M VHB double-sided tape included or M5 hardware through end flanges (hardware not included) |
| Warranty: | 5 Year |
PACK CONTENTS
- 1x Canopy Light Bar pre-fitted with 3M VHB double sided tape
- End Caps
Note: Compatible with M5 screws/bolts - not included.
OPTIONAL ACCESSORIES
1m Extension Cable
3m Extension Cable
5m Extension cable
2-Way Splitter Cable
4-Way Splitter Cable
Battery to Light Connector
Cigarette Plug to Light Connector
SUPPORT DOCS

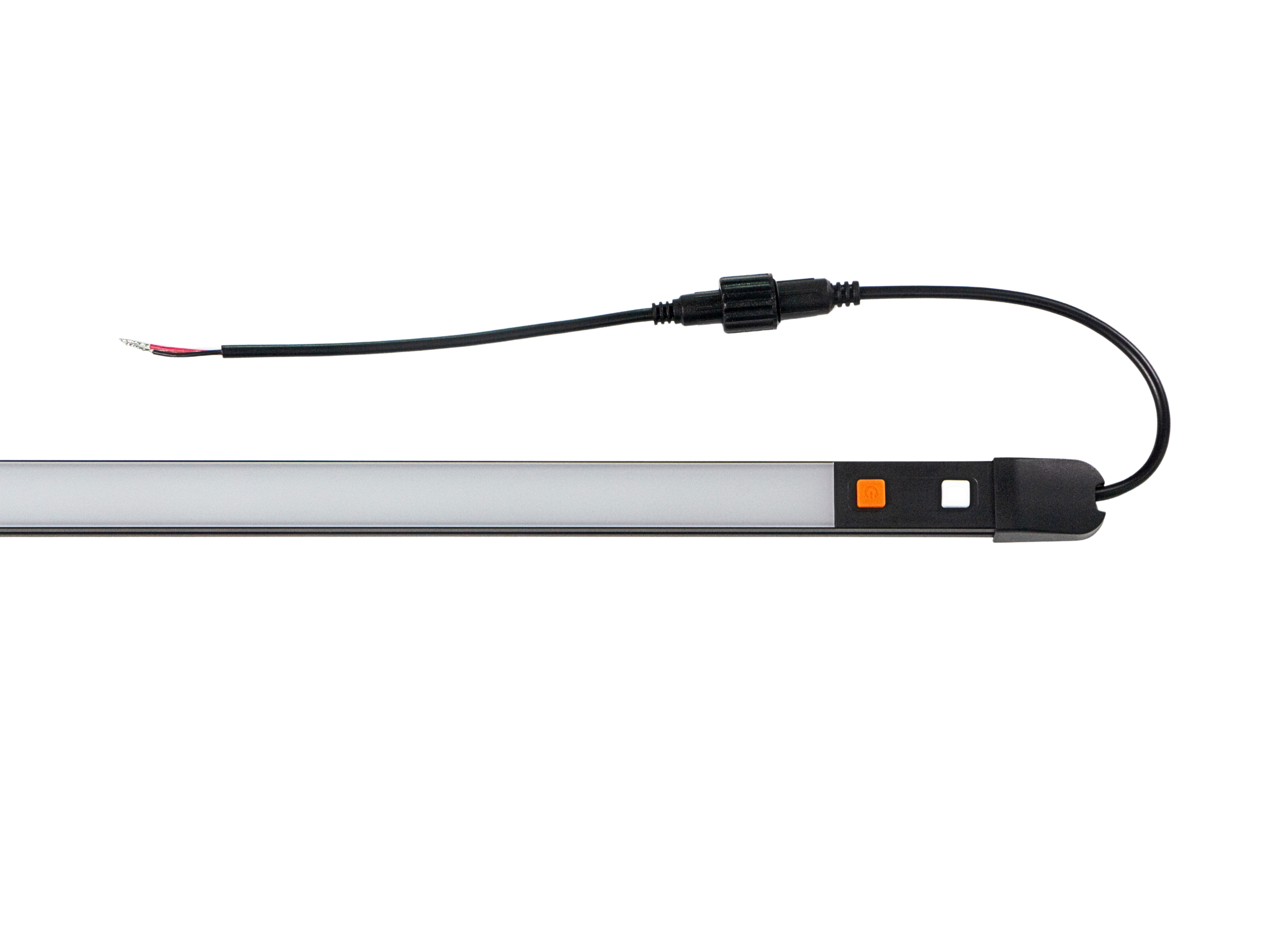

30cm Tri-Colour LED Canopy Light Bar
