Bushman Upright Fridge Fan Kit

BUSHMAN FRIDGE FAN BRACKET

This kit mounts a 60mm 12V fan into your fridge to circulate cold air from the freezer throughout the fridge, improving the cooling performance.

Compatible with Bushman 85L and 130L Upright fridges.

Note: This kit now comes with a 60mm fan instead of a 90mm. The images showing the fan kit fitted are of the old size and are for example only.

FAN SPECIFICATIONS

• Size: 60 W x 60 H x 25 D
• Operating Supply Voltage: 12 VDC
• Airflow: 23.5 CFM
• Speed: 4500 RPM

• Power Rating: 0.9 Watts (900 mW)
• Noise: 27 dBA

PACK CONTENTS

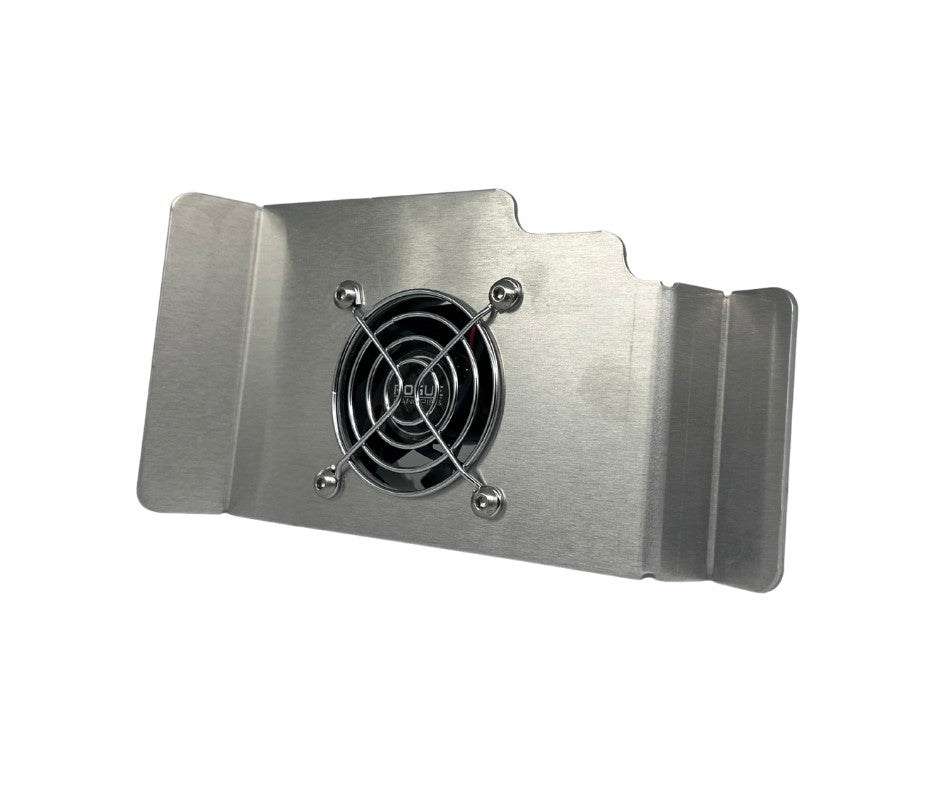

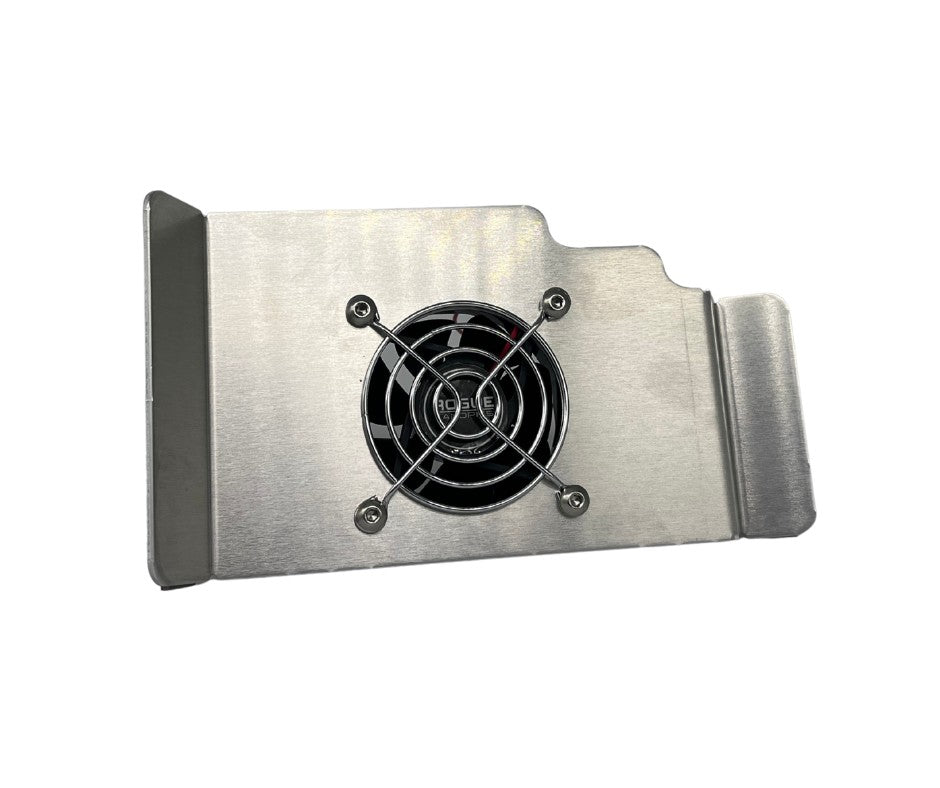

• 1x 2mm aluminium fan bracket with double-sided tape for fitment
• 1x 12v Fan 60mm
• 1x Wire fan finger guard
• Hardware to mount fan to bracket.

FITMENT OF BRACKET

Please note that we do not provide wiring instructions, diagrams or electrical advice, and we recommend using an auto electrician for the connection.

The bracket mounts to the fridge using double sided tape which is included in the kit.

1. Before fitting the bracket to the fridge, we recommend that you test the fan on your power source.

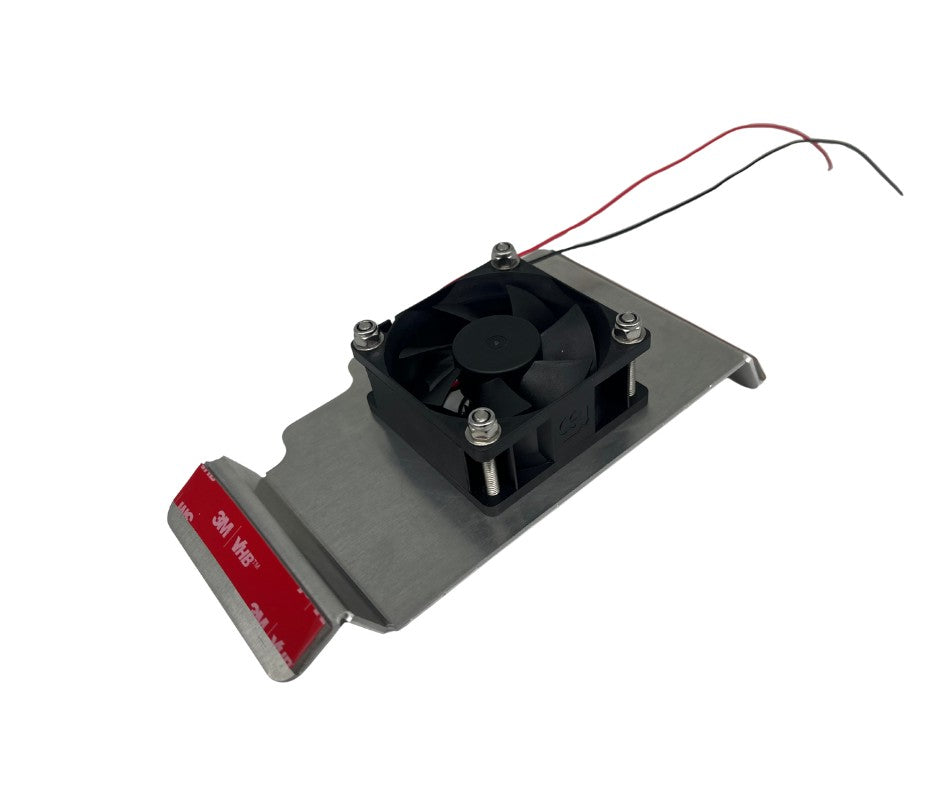

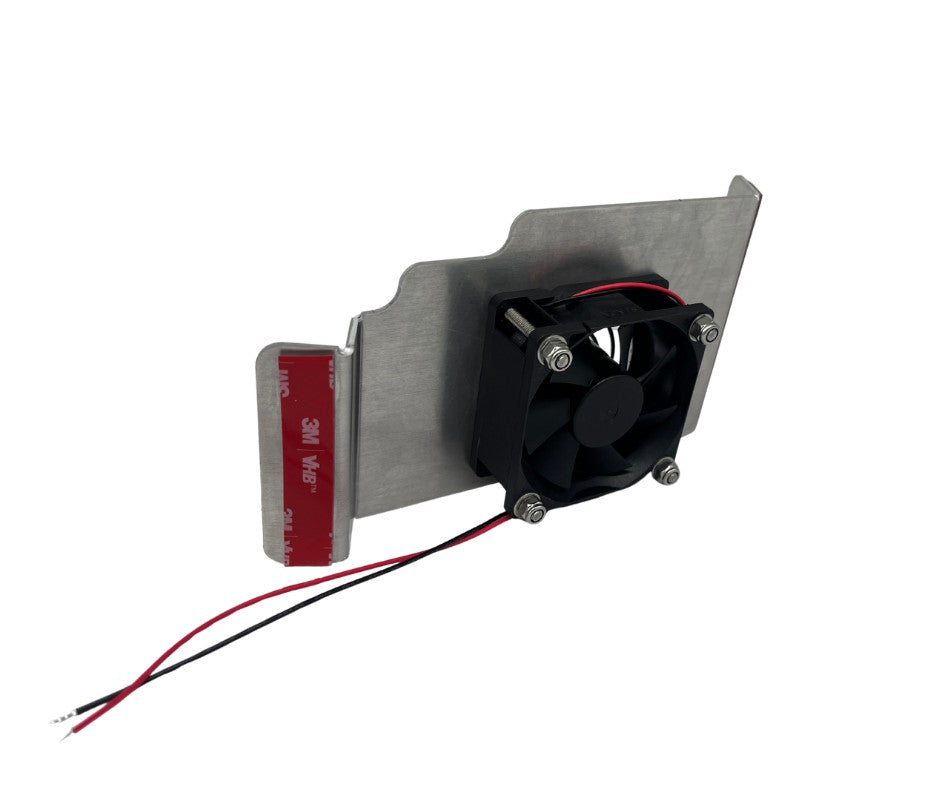

2. Fit the fan and finger guard to the aluminium bracket using the hardware supplied, with the non-stickered side of the fan facing forwards and the wiring best positioned for connection to your power source.
3. Unplug the fridge and leave until room temperature, then wipe down the surface with a clean dry cloth.
4. Connect the fan to your power source.

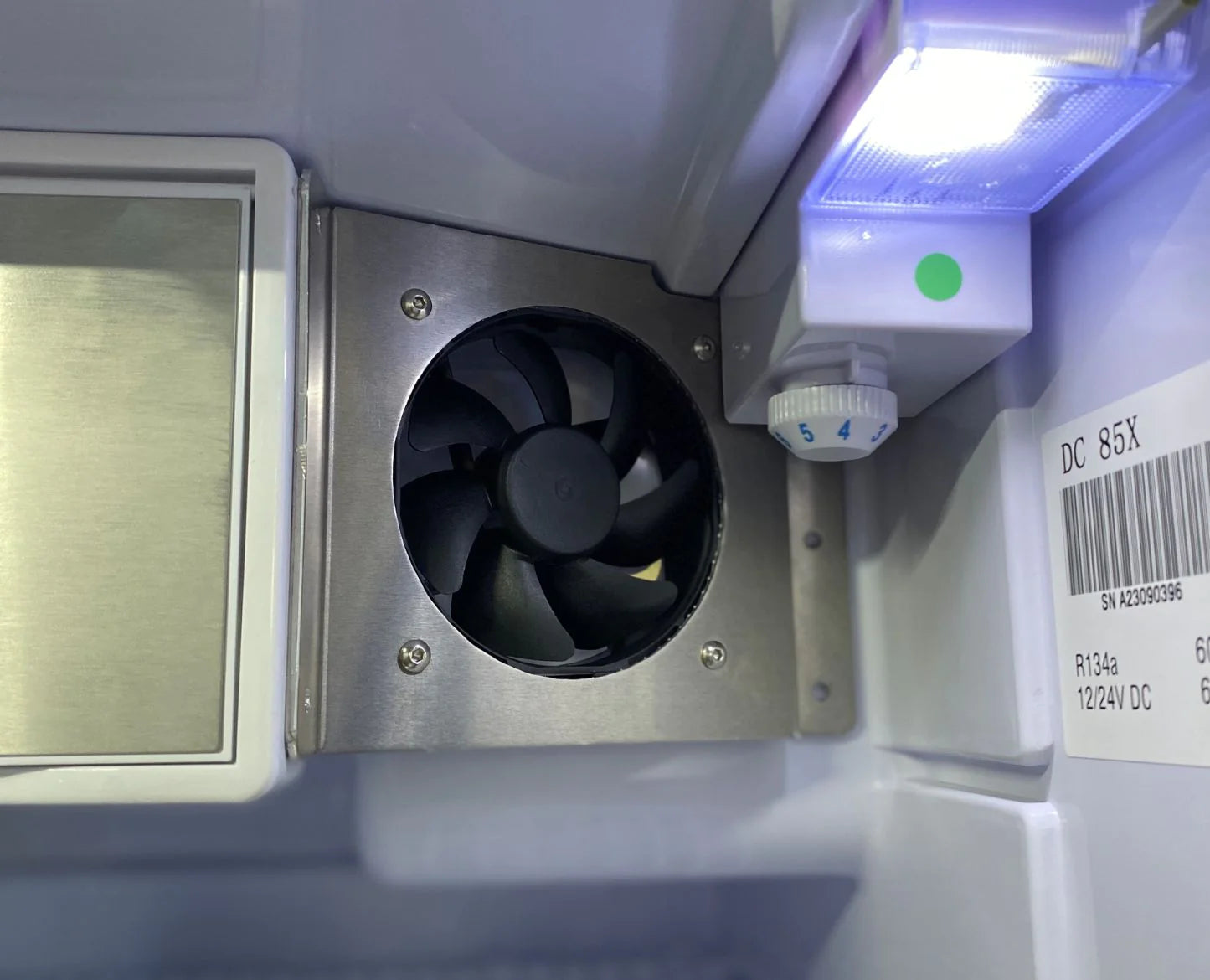

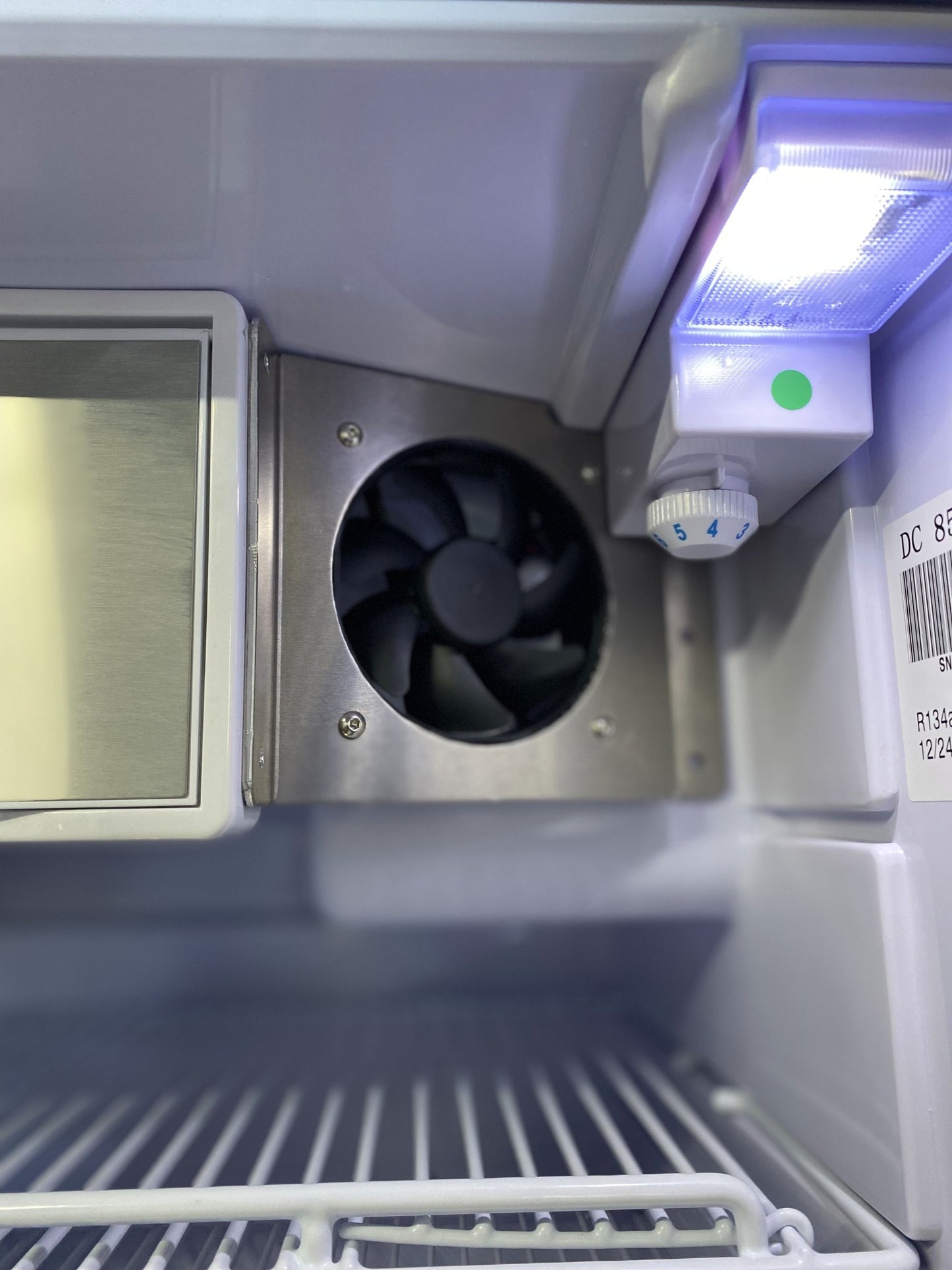

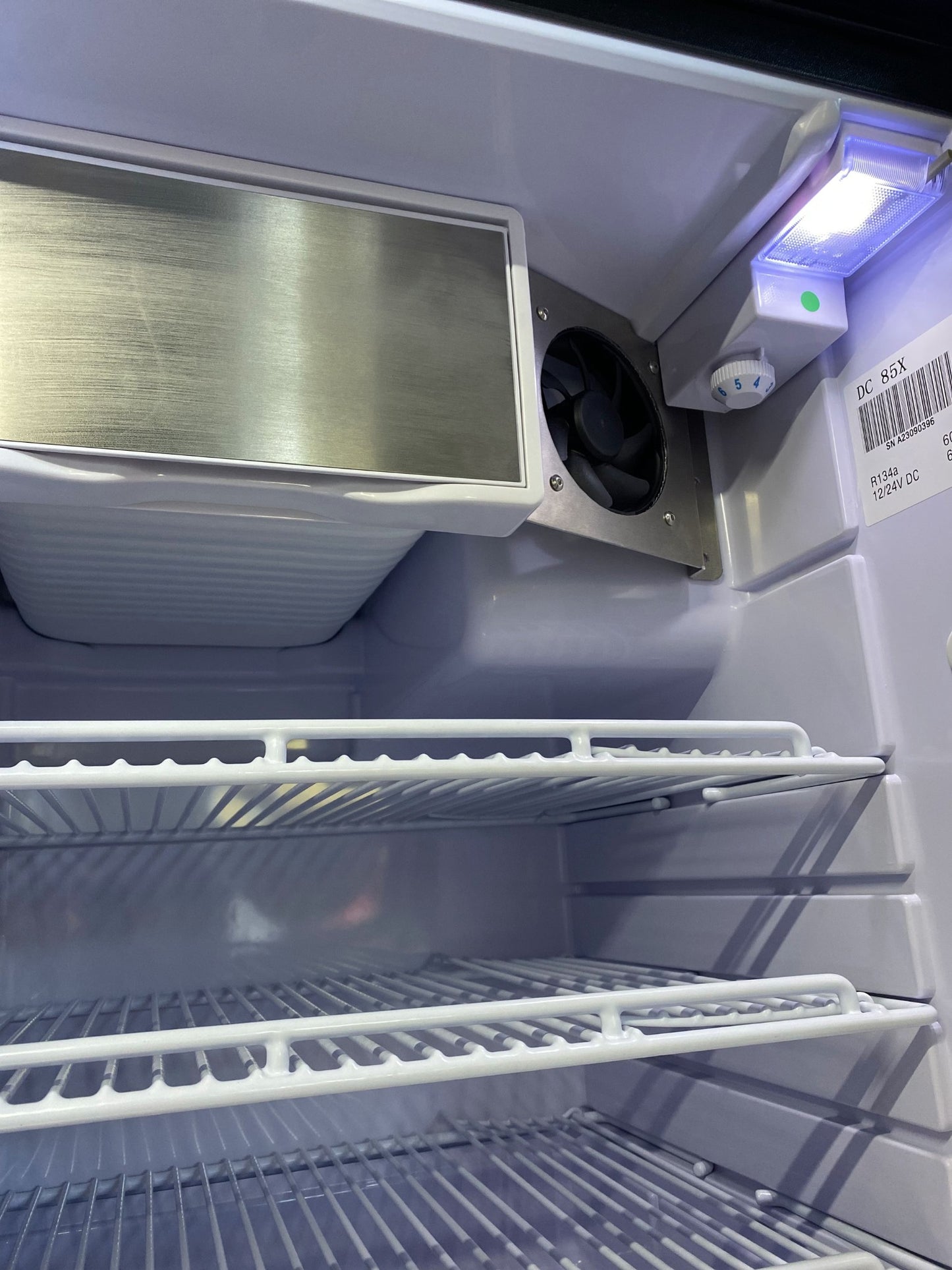

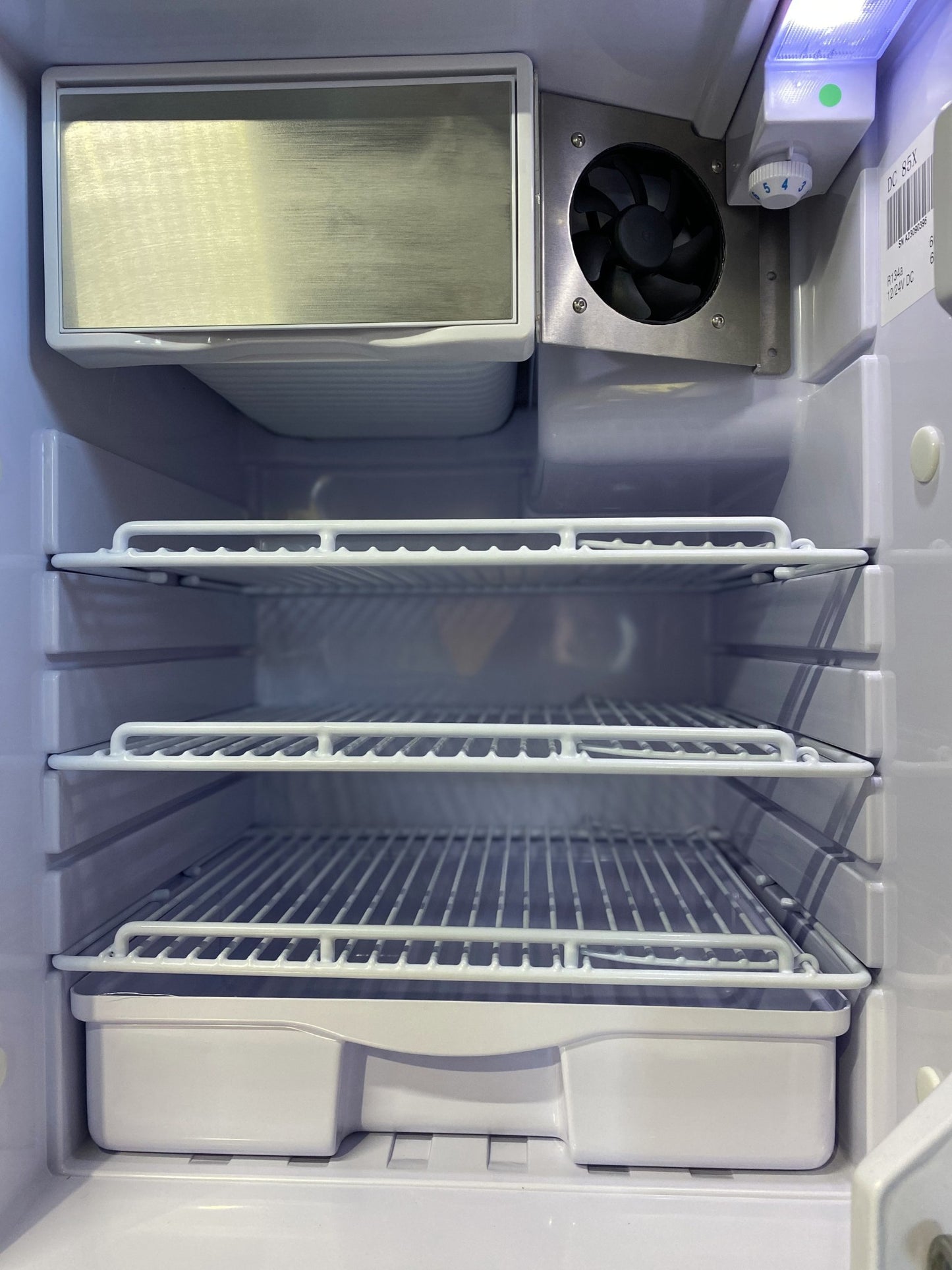

5. Remove the double sided tape backing, position unit between the right hand side of fridge and freezer as shown in the photos.  Press firmly into place and keep pressure on it for approx. 30 seconds. We recommend leaving the fridge turned off for a couple of hours to let the tape set.

OFTEN PURCHASED WITH:

Rogue Fan Switch
Canopy vents
Canopy vents with 12V fans

DISCLAIMER

Please note that installing this product and modifying your fridge may void your fridges warranty, and we take no responsibility for any claims, issues or damage you may incur as a result. We do not provide electrical wiring instructions, diagrams or advice, and we recommend using a licensed professional to connect the fan to your power source.
