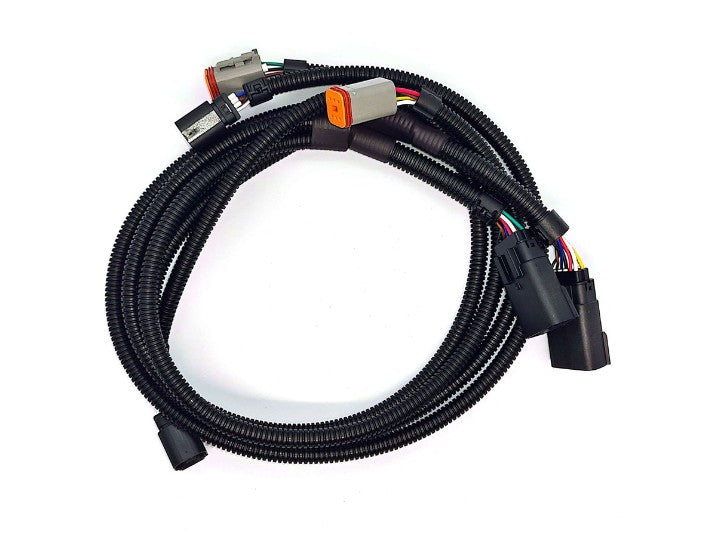

Ford Ranger T6.2 Next Gen, (2022 - Current Styleside) - Sonar /Blis®/Tail Light Remount Patch Harness Adapter (Pair)

PAIR OF RELOCATION ADAPTERS FOR 2022 - CURRENT NEXT GEN FORD RANGER (T6.2) STYLESIDE (LEFT/RIGHT).

Allows the Sonar/BLIS® module to be removed from the factory light and relocated to a location of your choosing.  Pre-pinned for LED Austraila/OZ LED lights, and can be easily re-pinned.

Designed with OEM specifications in mind, these adapters simply plug in to the original harness on the chassis, and have a 100cm loom for the sonar, and an 80cm loom for an aftermarket tail light.

Compatibility: Next Gen Ford Ranger (2022 - Current Styleside) - all models except Raptor.

IMPORTANT NOTES

Cannot be used with halogen/globe style lights.

The use of sequential light rectifiers  are suggested if connecting sequential led indicators, see below.

Tail lights must be wired in with 10W load resistors.

SEQUENTIAL LIGHT RECTIFIERS (OPTIONAL)

If using sequential LED indictors, simply plug the Sequential Rectifier Modules between your vehicle and the aftermarket LED tail lights to rectify sequential LED indicator issues.

These are sold as an optional extra, click here to view product.

CENTRAL LOCKING ADAPTER (OPTIONAL)

Central locking/number plate light adapter with 15cm wires to suit Next Gen Ranger.

This connector plugs into the Styleside Fuel Flap Harness or number plate light harness, and allows you to connect your toolbox/canopy central locking, or number plate light without splicing into the factory wiring.

*Relays may be required for heavy loads. Consult your canopy manufacturer or the Ford Body and Equipment Mounting Module.

These are sold as an optional extra, click here to view product.
